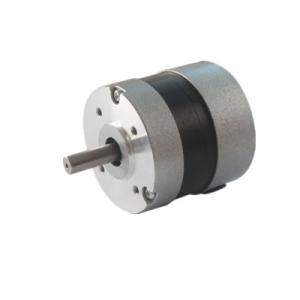

57mm Dia Brushless Direct Current Motor Low Noise Hall Effect Angle 120 Degree

Product Categories

Retek Motion Co., Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 57mm Dia Brushless Direct Current Motor Low Noise Hall Effect Angle 120 Degree
Brand: Retek
Price: 1 USD

Brand Name : Retek

Model Number : W57 Series

Certification : CCC,UL

Place of Origin : China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000PCS/Month

Delivery Time : 14days

Packaging Details : 25PCS/Carton

Wind Type : Star/Delta connection

Number of Poles/Phase : 4/3

Hall Effect Angle : 120°

Shaft Run Out : 0.025mm

Dielectric Strength : 500 VDC for one minute

Environmental conditions : -10-40℃

Magnet material : Bonded NdFeB

Insulation : B

Contact Now

φ57mm OD: W57 Series Brushless DC motors for mobility,cars, automatic doors, liquid dispense and rotary diaphragm pump

Typical Application:

Mobility,cars, automatic doors, liquid dispense and rotary diaphragm pump drives, robotics and agricultural and light industrial applications.

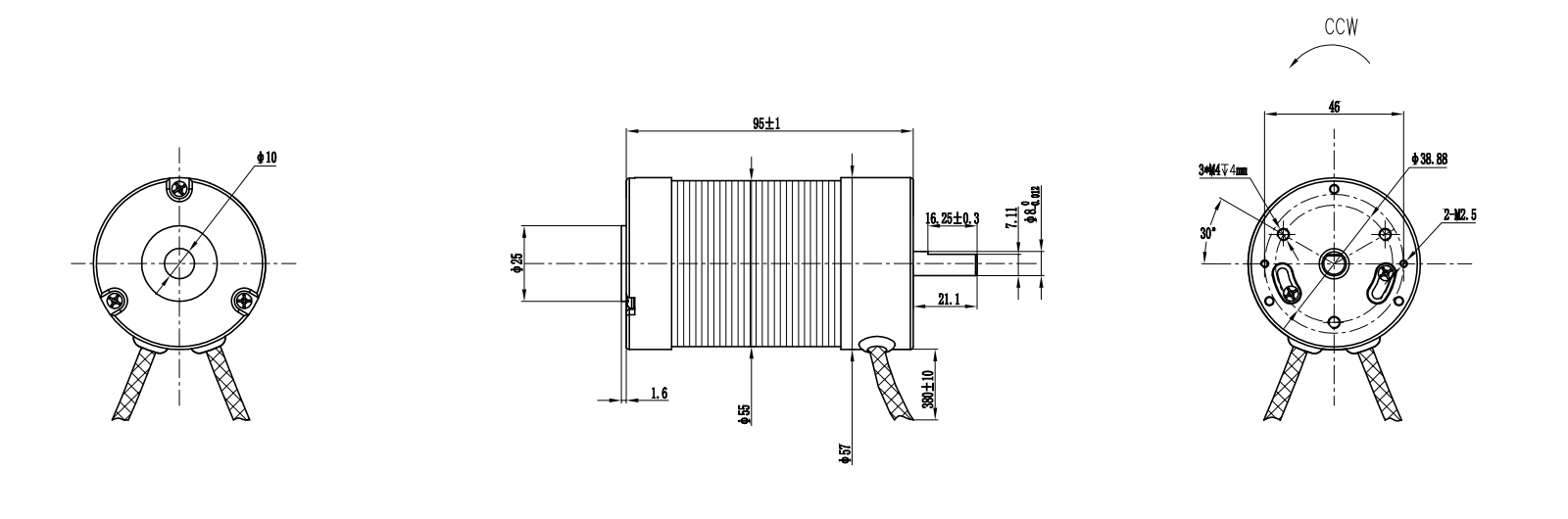

Drawing:

57mm Dia Brushless Direct Current Motor Low Noise Hall Effect Angle 120 Degree

Descriptions:

For custom made, please feel free to contact us today.

Product Tags:

brushless direct current motor
