DC Gear Motor Diameter 30mm With Gear 12V 24V W3085A-12

Name: DC Gear Motor Diameter 30mm With Gear 12V 24V W3085A12
Brand: Retek
Price: 1 USD

Quality DC Gear Motor Diameter 30mm With Gear 12V 24V W3085A-12 wholesale

Brand Name : Retek

Model Number : W3085A-12

Certification : CCC, UL

Place of Origin : China

MOQ : 1000pcs

Price : Negotiable

Supply Ability : 50000pcs/Month

Delivery Time : 45 Days

Packaging Details : Cartons

Payment Terms : Western Union, T/T, MoneyGram

Type : Brushless DC Motor

Color : Black

Weight : 1.5kg

Size : 30mm*85mm

Application : Yacht Rudder Control, Motion Control,Gear Transmission and etc.

Keywords : Brushless Motor

Speed(rpm) : 1500±10% rpm

Commutation : Brushless DC Motor

Usage : Yacht Rudder Control, Motion Control,Gear Transmission and etc.

Voltage(v) : 12V

Torque : 0.065N.m

Product name : Brushless Motor Diameter 30mm With Gear 12V 24V W3085A-12

Contact Now

DC Gear Motor Diameter 30mm With Gear 12V 24V W3085A-12

This W30 series brushless DC motor(Dia. 30mm) applied rigid working circumstances in automotive control and commercial use application.

It is durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and anodizing surface treatment with 20000 hours long life requirement requirements.

Application:

suction pump,rudder control,helicopter, speedboat and etc.

Specification:

Voltage Range:	12VDC,24VDC
Output Power	15~50 watts
Duty	S1, S2
Speed Range	up to 9,000 rpm
Operational Temperature:	-20°C to +40°C
Bearing Type	SKF, NSK bearings
Insulation Grade	Class B,Class F
Optional shaft material	#45 Steel, Stainless Steel, Cr40
Optional housing surface treatment	Powder Coated, Electroplating
Housing Type	Air Ventilated
EMC/EMI Performance	pass all EMC and EMI testing

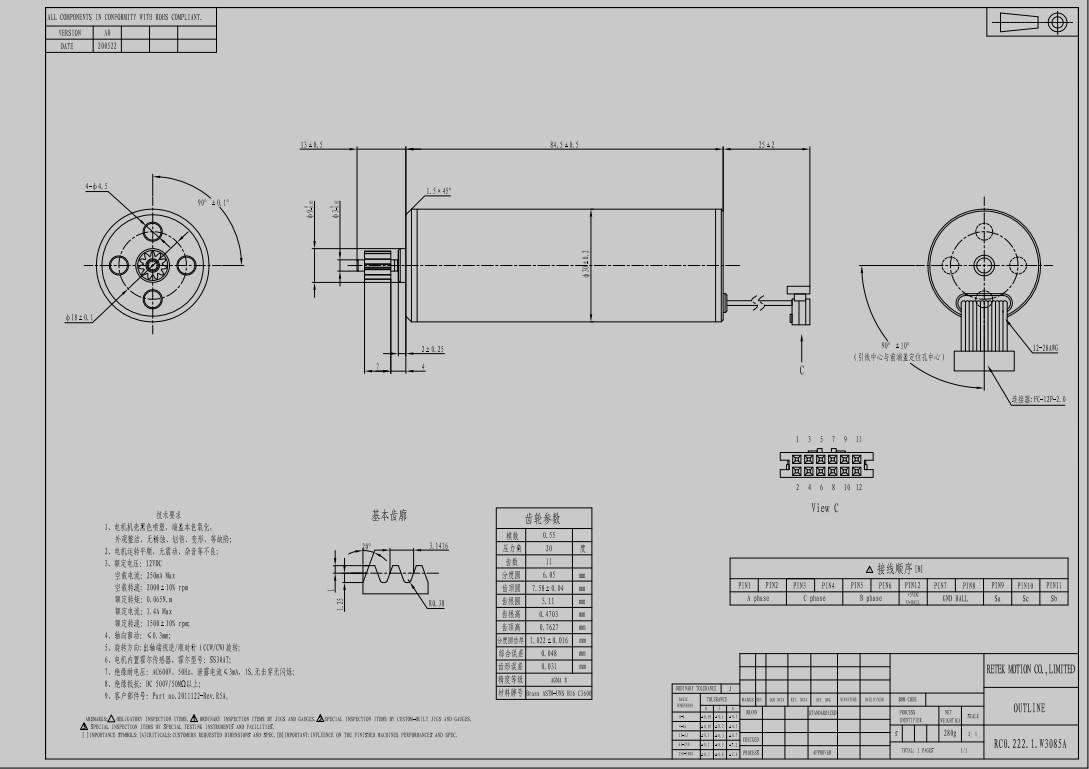

Drawing:

DC Gear Motor Diameter 30mm With Gear 12V 24V W3085A-12

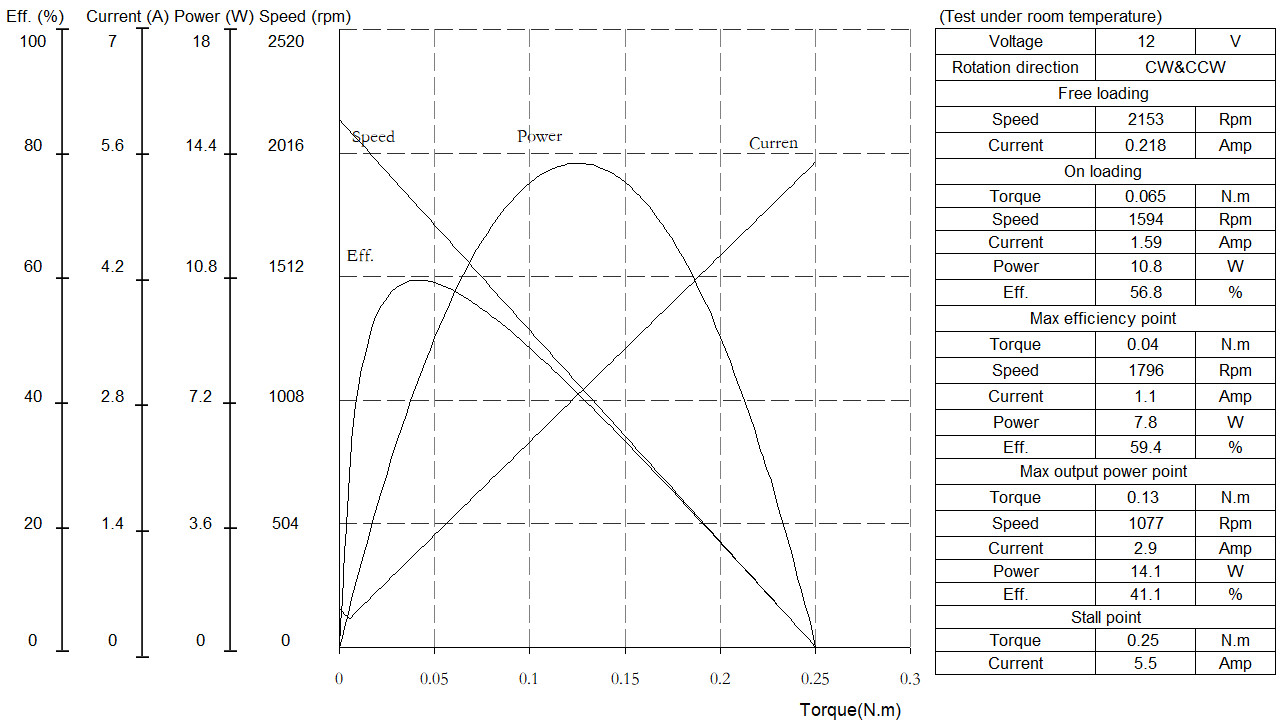

Typical Curve:

DC Gear Motor Diameter 30mm With Gear 12V 24V W3085A-12
